High Pressure Water Swivel

Description

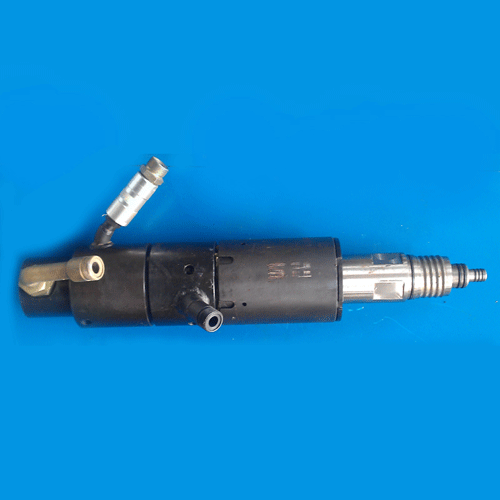

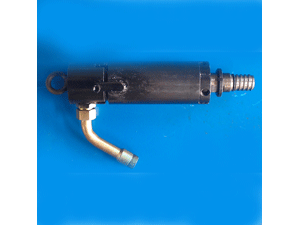

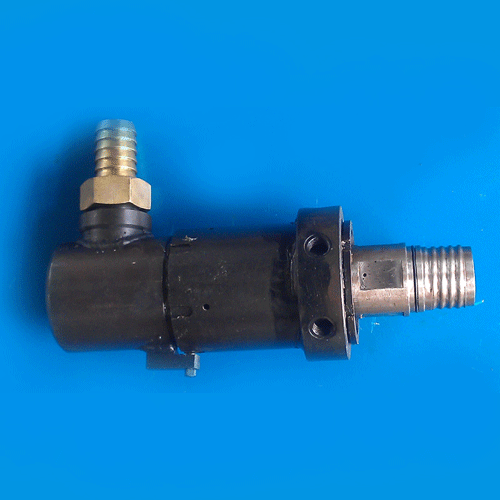

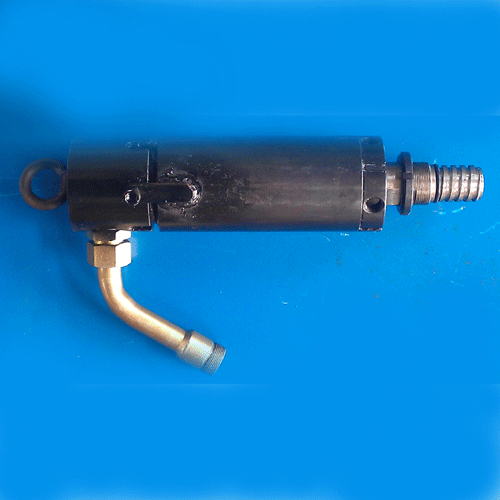

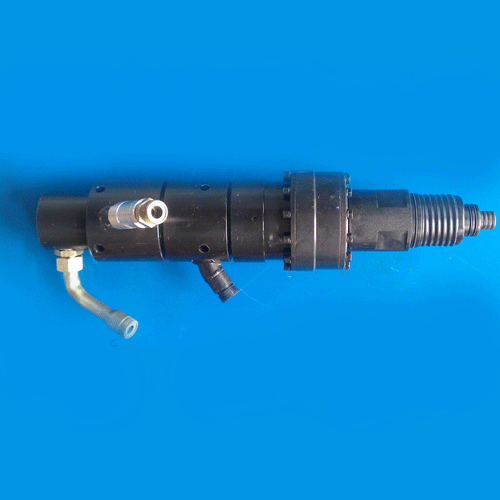

Water swivel is a kind of component, mainly used in the geological exploration. This drilling swivel is mainly comprised of high-pressure sealing ring, core tubes and spindle. This drilling water swivel is installed at the end of core tube of the power units. With its special structure and strength, the water swivel can bear certain tensile and impact force. It can work well in conjunction with drill rods and power units. In order to meet the requirements of various jet grouting construction technologies, we have developed water swivels of various models, such as 50 single types, 60 double models, 73 double patterns, 73 triple models, and 89 triple patterns and 89 triple high pressure types.

Features
1. This water swivel features high efficiency and long service lifespan.
2. The drilling swivel is of high tightness for high pressure and can withstand pressure as high as 30 mpa. It adopts the most advanced sealing device in China.
3. This drilling water swivel provides convenient maintenance and easy dismantlement.
4. Pneumatic valve is installed at the entrance of the airway so as to protect air compressor from accidental damage.
5. This water swivel is simple and easy to operate.
6. This drill swivel is of great durability.
7. This drilling swivel is eco-friendly and energy saving.

Working Process
1. High pressure slush pump, air compressor or high pressure clear water pump delivers high pressure serous fluid, compressed air or high pressure water to drilling water swivel.
2. And the fluid, compressed air or high pressure water is then transported to drilling rods and drilling bits through such drilling swivel.

Advantages of Our Company
1. Our processing center has introduced advanced high-end equipment, which can greatly save human input, lighten labor intensity and improve production efficiency as well as reduce production costs.
2. Our technical staffs with rich experience provide valuable advice for research, development of innovation of the drilling water swivel.
3. Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Singapore, Iran, Britain, and Canada, Nigeria and other countries and regions.
4. We have received the ISO9001-2000 quality system certification, and in 2012 passed the GJB9001B-2009 certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.

Parameters

As a professional supplier of water swivel in China, Wuxi Anmai Construction Machinery Co., Ltd. provide customers worldwide with drilling swivel, anchor drill rig, jet grouting drilling rig, tunnel drilling machine, pump truck and auxiliary drilling equipment. All of our products have passed the certification of ISO9001: 2000 and GJB9001B-2009. If you're interested in our drilling water swivels, please contact us directly.
