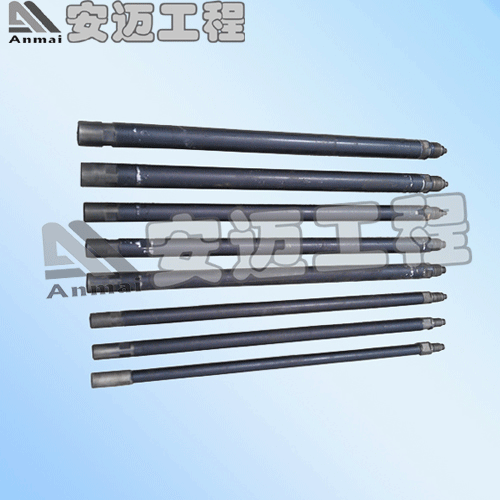

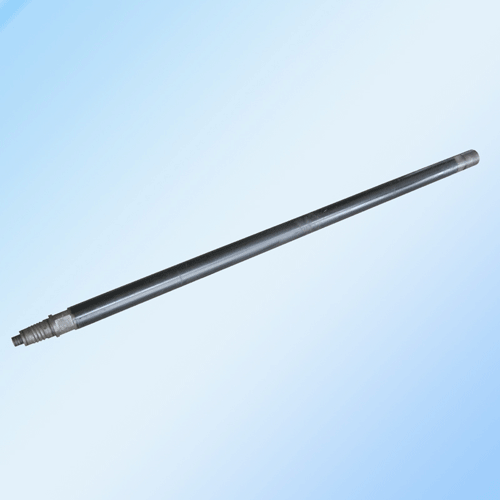

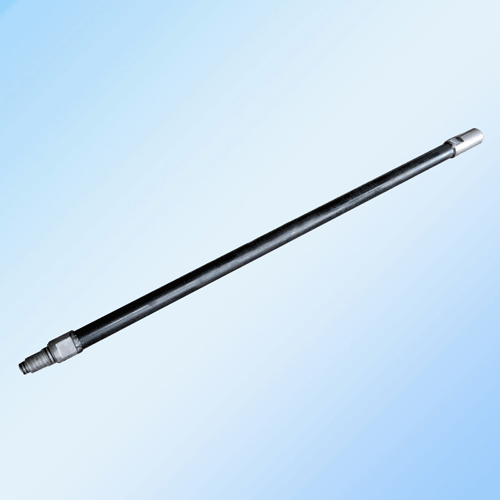

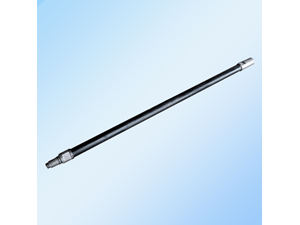

Drilling Rod

Description
Drilling rods are kind of jet grouting drilling tools. They are used to deliver serous fluid, compress air and water and so on. The drill rods adopt pipe fittings from Shanghai Baoshan Iron and Steel Plant with different diameters (e.g. Φ50, Φ60, Φ73, Φ89). And the joint takes superior alloy steel as its raw material. And the quality of the drilling rods can be guaranteed through special technology for heating processing and advanced double seal structure.

Characteristics
1. The ends of jet grouting drilling rods are constructed from high strength steel.
2. With a circlip or wire fuse connection, inner tubes in the dual tube systems are secured inside the outer rod. This allows for easy removal, repair, or replacement of the inner drill rod as required.
3. The sealing materials in the jet grouting systems are specially designed to resist damage from the abrasive grouts. This can save much time spent changing drilling rod seals and maximize the time spent grouting.
4. The rods adopt advanced corrugated clasp connection mode in domestic field. This makes the drill rods easy to link and have a good seal effect and long service time.

Advantages
1. A range of high quality drilling rods is available for our esteemed clients.
2. Our drill rods are made from high quality material and are quality-tested on various parameters for optimum performance.
3. Drilling rods are quality-crafted in standard sizes. They are made from superior alloy steel, with each end of the rods heat-treated for greater wear resistance.
4. Drill rods also provide a tight mechanical seal. And such drilling tools are developed to meet or surpass the performance of any similar product.

Parameters

Name	Code	Unit	Length	Weight	Remark
50 single Drilling Rod	G4150	Rod	1.5 m	14 kg	Can be made or selected according to the required length specifications.
		Rod	2 m	19 kg
		Rod	3 m	26 kg
60 single Drill Rod	G4160	Rod	1.5 m	22 kg
		Rod	2 m	28 kg
		Rod	3 m	39 kg
60 Duplex Drilling Rod	G4260	Rod	1.5 m	27 kg
		Rod	2 m	37 kg
		Rod	3 m	51 kg
73 Duplex Drill Rod Thick Wall Rod	G4273	Rod	1.5 m	30 kg
		Rod	2 m	40 kg
		Rod	3 m	59 kg
73 Triple Drilling Rod	G4373	Rod	1 m	18 kg
		Rod	1.5 m	24 kg
		Rod	2 m	36 kg
		Rod	3 m	47 kg
89 Triple Drill Rod	G4389	Rod	1 m	27 kg
		Rod	1.5 m	3 .kg
		Rod	2 m	53 kg
		Rod	3 m	64 kg
89 Triple Double Pressure Drilling Rod	G4389G	Rod	1 m	27 kg
		Rod	1.5 m	35 kg
		Rod	3 m	64 kg

Founded in July 6, 2003, Wuxi Anmai Construction Machinery Co., Ltd. specializes in research, development, production and sales of foundation engineering machinery in China. Our main products include anchor drill rig, jet grouting drilling rod, tunnel drilling machine, pump truck and auxiliary drilling equipment. For more information, please enter our home page and contact us when clients are convenient.
