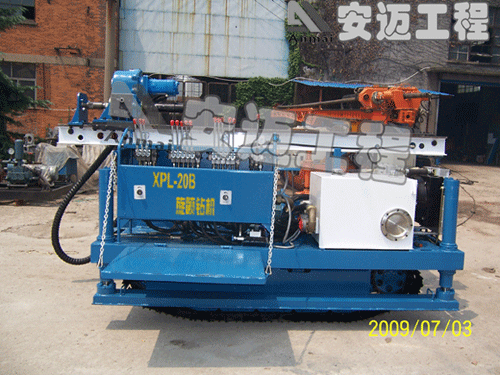

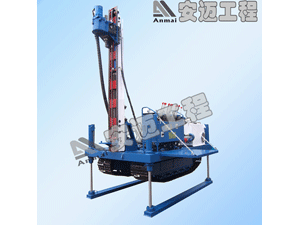

XPL-20B Crawler Jet Grouting Drilling Rig

Description
With drilling depth 20-50m, this XPL-20B crawler drill rig, also known as XPL-20B crawler drilling machine, can guarantee continuous dynamic function and static function under high pressure working conditions. It is used for delivering slurry, compressed air and water. And it is applied to basement seepage control of high-rise buildings, soft ground stabilization, railway, highway and pier reinforcement, big river and levee renovation, etc.
The engine of XPL-20B crawler drill rig is made up of power head, operation floor, mast, oil tank, pump station and electrical cabinet. The drilling tools are composed of drill rod, shunt, drilling bit, loose-prevention machine, locking devices, padding fork, and reducer union.

Advantages
1. This XPL-20B crawler drill rig is stable, efficient, versatile, and able to drill complex strata and able to deal with accidents.
2. Our company can provide a complete set of XPL-20B crawler drilling machine for our customers. We can also offer some training to our customers, demonstrating how to drill a hole.
3. By adopting full hydraulic technology, the XPL-20B crawler drill rig is convenient to operate. And it has breakthroughs in key technology, such as adding stepless speed regulation to jet grouting drilling and anchor drilling.

Features
1. This XPL-20B crawler drilling machine can work in a limited area. Due to max width 840mm, and length 2800mm, the XPL-20B crawler drill machine can work in doors. As the max weight of bulk drilling machine is 300kg, it is very convenient to move and displace.
2. The XPL-20B crawler drill rig can be used in a wide range of strata. We can offer adjustable equipment in accordance with different strata. The maximum output torque can reach 3600N.m, and pulling force 60kN. When drilling a hole, we can drill by such ways: carbide bit rotary drilling way, DTH hammer bit drilling way, cone bit drilling way, etc.
3. The XPL-20B crawler drilling machine is not only for jet grouting, but also for anchoring.
4. Many kinds of auxiliary equipment are in your choice. We develop a large number of jet-grouting drills to meet various demands of our clients in accordance with market demands, such as drill of single, double, triple, swing jet and fixing jet.
5. To meet the requirements of market, the drilling tools are in complete set, such as single, double, triple, directional jet grouting, swing jet grouting drill.
6. To get advanced machinery, customers can group different modules together.

Parameters of XPL-20B Crawler Drill Rig
