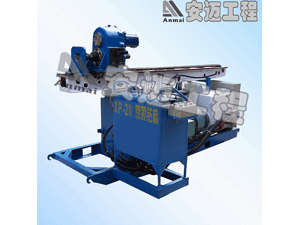

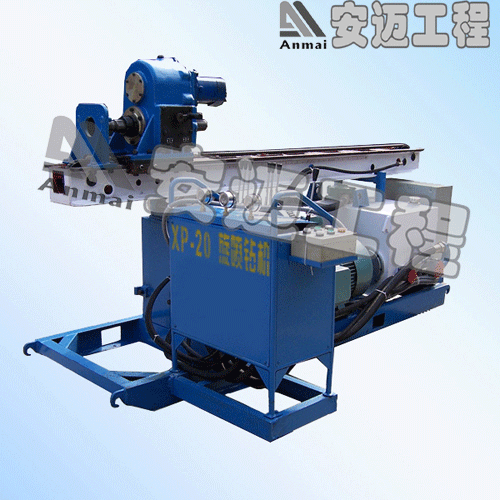

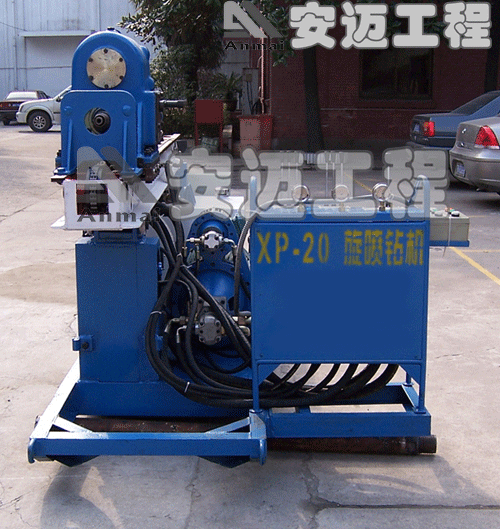

XP-20B Jet Grouting Drilling Rig

Description

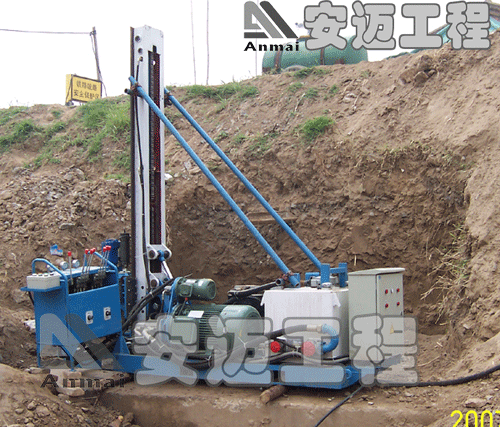

With drilling depth 20-50m, this jet grout drill rig can guarantee continuous dynamic tightness and static tightness under high stressed working conditions. This jet grout drilling equipment is used for delivering slurry, compressed air and water. And it is applied to soft ground stabilization, seepage control of basement of high-rise buildings, big river and levee renovation, railway, highway and pier reinforcement, etc.

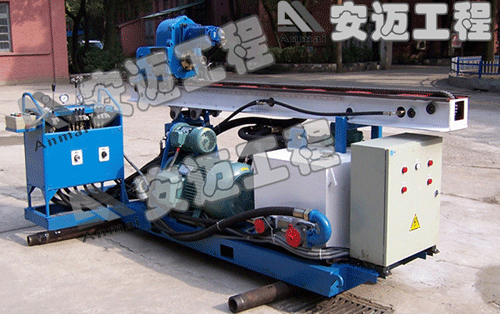

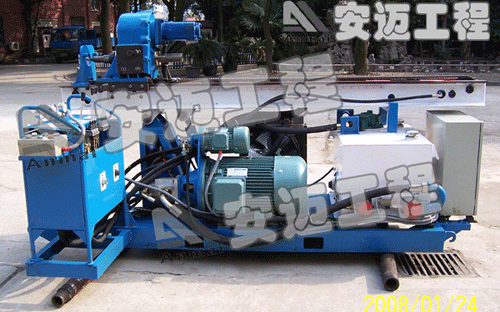

The engine of jet grout drill rig is composed of power head, operation floor, mast, oil tank, pump station and electrical cabinet. The drilling tools are made up of drill rod, shunt, drilling bit, preventing loose machine, locking devices, padding fork, and reducer union.
Our company, Wuxi Anmai Construction Machinery Co., Ltd has rich experience in manufacturing jet grout drilling equipment.

Advantages
1. To domestic customers, our company can meet their requirements and offer a complete set of jet grout drill rig. We can also provide some training to them, demonstrating how to drill a hole.
2. The jet grout drilling equipment is convenient to operate, owing to that it adopts full hydraulic technology and has breakthrough in key technology, such as adding stepless speed regulation to jet grouting drilling and anchor drilling.

Features
This jet grout drill rig is stable, efficient, versatile, and able to drill complex strata and able to deal with accidents.
1. This jet grout drilling equipment can work in a limited area. Due to its max width 840mm, and length 2800mm, the drilling equipment can work in doors. The max weight of bulk drilling machine is 300kg, so it is very convenient to move and displace.
2. The jet grout drill rig is applicable to a wide range of strata. According to different strata, we can offer corresponding equipment. The biggest output torque can reach 3600N.m, and pulling force 60kN. When drilling a hole, we can use such ways: carbide bit rotary drilling, DTH hammer bit drilling, cone bit drilling way, etc.
3. The jet grout drilling equipment is not only for jet grouting, but also for anchoring.
4. It has many kinds of auxiliary equipment. Customers can choose different modules by themselves to satisfy their different needs. Customers can buy modules at a time, or buy modules later in line with the development of construction.
5. The drilling tools are in a complete set to satisfy customers' needs, such as single, double, triple, directional jet grouting, swing jet grouting drill.
6. Customers can group different modules together, in order to get advanced machinery.

Parameters of Jet Grout Drill Rig
