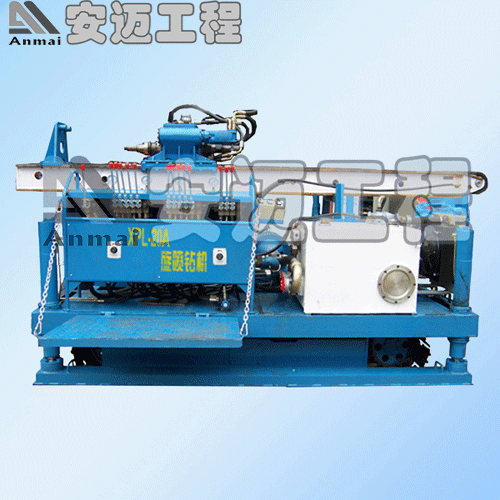

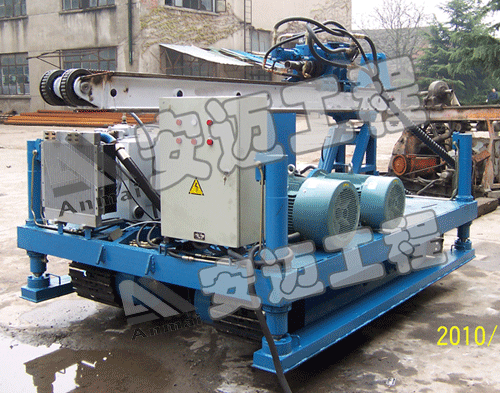

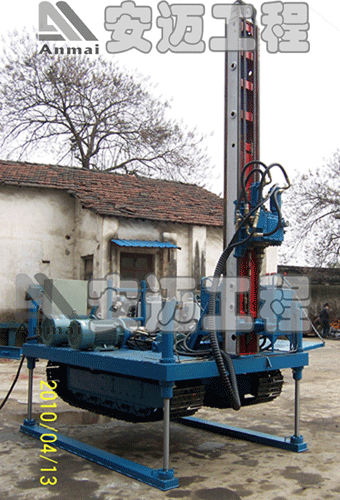

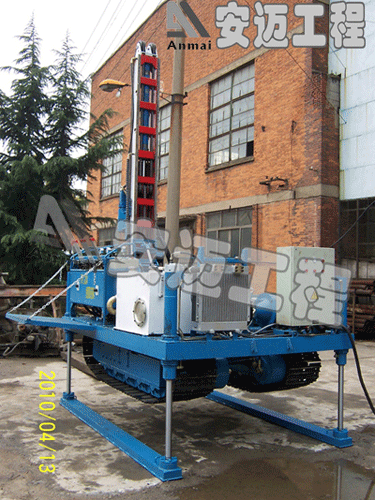

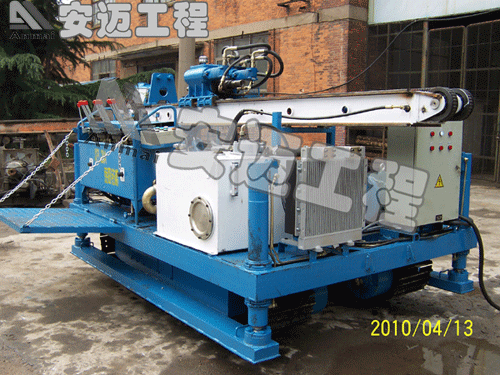

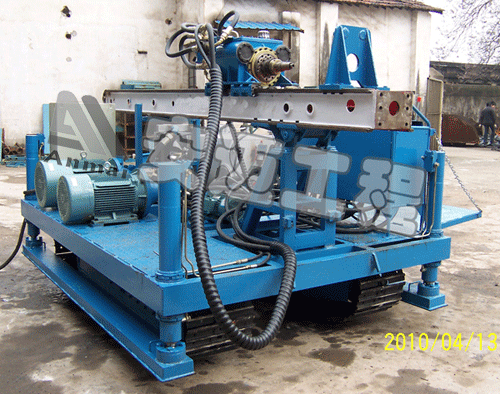

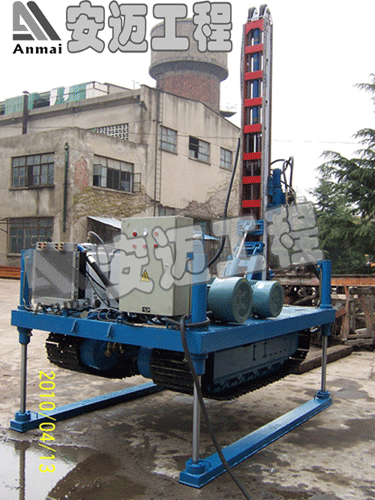

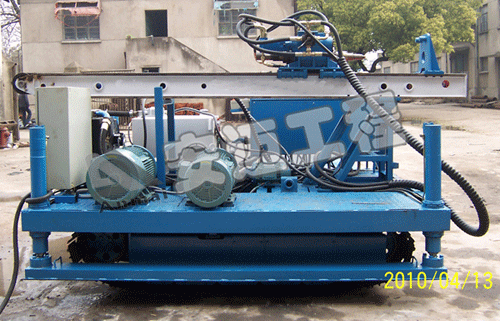

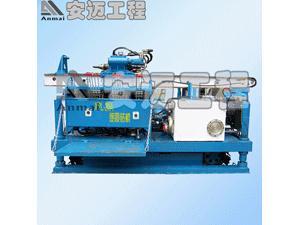

XPL-20A Crawler Jet Grouting Drilling Rig

Description
With drilling depth 30-60m, this XPL jet grout drill machine can ensure continuous dynamic property and static property under high pressure working conditions. In thus way, it is also called high pressure drilling rig. It is applied to delivery slurry, compressed air and water. And it is applicable to soft ground stabilization, basement seepage control of high-rise buildings, big river and levee renovation, railway, highway and pier reinforcement, etc.
The engine of XPL high pressure drilling rig is made up of power head, operation floor, mast, oil tank, pump station and electrical cabinet. The drilling tools are composed of drill rod, shunt, drilling bit, loose-prevention machine, locking devices, padding fork, and reducer union.

Advantages
1. This XPL jet grout drill machine is stable, efficient, versatile, and able to drill complex strata and able to deal with accidents.
2. Our company can meet domestic customers' requirements and equip with a complete set of high pressure driiling rig. We can also provide some training to our customers, demonstrating how to drill a hole.
3. By adopting full hydraulic technology, the XPL jet grout drill machine is convenient to operate. And it has breakthrough in key technology, such as adding stepless speed regulation to jet grouting drilling and anchor drilling.

Features
1. This XPL jet grout drill machine can work in a limited space. With max width 840mm, and length 2800mm, the XPL high pressure drilling rig can work in doors. As the max weight of bulk drilling machine is 300kg, it is very convenient to move and displace.
2. The high pressure driiling rig is not only for jet grouting, but also for anchoring.
3. Many kinds of auxiliary equipment are in option. Customers can choose different modules by themselves to meet their different needs. Customers can buy modules at a time, or buy later in line with the development of construction.
4. The XPL jet grout drill machine can be used in a wide range of strata. We can offer corresponding equipment in accordance with different strata. The maximum output torque of high pressure drilling rig can reach 3600N.m, and pulling force 60kN. When drilling a hole, we can use such ways: carbide bit rotary drilling way, DTH hammer bit drilling way, cone bit drilling way, etc.
5. To achieve the requirements of market, the drilling tools are in complete set, such as single, double, triple, directional jet grouting, swing jet grouting drill.
6. To get advanced machinery, customers can group different modules together.

Parameters of XPL Jet Grout Drill Machine
