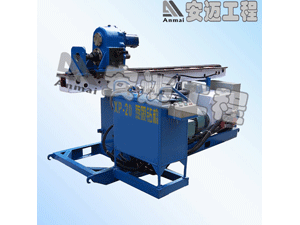

XP-20 (Standard) Jet Grouting Drilling Rig

Description
With drilling depth is 20-50m, this jet grout drill rig is stable, efficient, versatile, and able to drill complex strata and able to deal with accidents. It is applied to soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc. Under high pressure working conditions, the jet grouting drilling tool can guarantee continuous dynamic property and static property. This jet grout drill rig is used for conveying slurry, compressed air and water. The engine of XP jet grouting drill is composed of power head, operation floor, mast, oil tank, pump station and electrical cabinet. The drilling tools are composed of drill rod, shunt, drilling bit, preventing loose machine, locking devices, padding fork, and reducer union. Founded in July 6, 2003, Wuxi Anmai Construction Machinery Co., Ltd is a China supplier of those jet grout drill rig.

Advantages
1. To domestic customers, our company can meet their requirements and equip with a complete set of jet grout drill rigs. We can also provide some training to them, demonstrating how to drill a hole.
2. The XP jet grouting drill is convenient to operate. Because it adopts full hydraulic technology and has breakthrough in key technology, such as adding stepless speed regulation to jet grouting drilling and anchor drilling.

Features
1. This jet grout drill rig can work in a small space. With max width 840mm, and length 2800mm, the drilling equipment can work in doors. The max weight of bulk drilling machine is 300kg, so it is very convenient to move and displace.
2. The XP jet grouting drill is applicable to a wide range of strata. According to different strata, we can offer corresponding equipment. The biggest output torque can reach 3600N.m, and pulling force 60kN. When drilling a hole, we can use such ways: carbide bit rotary drilling, DTH hammer bit drilling, cone bit drilling, etc.
3. The jet grout drill rig is not only for jet grouting, but also for anchoring.
4. It has many kinds of auxiliary equipment. Customers can choose different modules by themselves to satisfy their different needs. Customers can buy modules at a time, or buy later in line with the development of construction, such as: single module, double module, triple module, swing grouting module, directional jet grouting module, anchoring module, etc.
5. The drilling tools are complete to satisfy customers' needs, such as single, double, triple, directional jet grouting, swing jet grouting drill.
6. Customers can group different modules together, in order to get advanced machinery.

Parameters of Jet Grout Drill Rig
