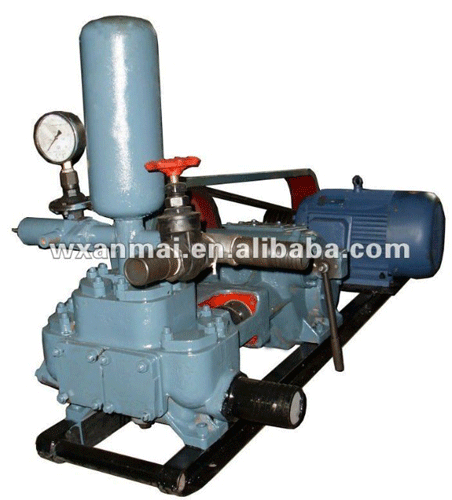

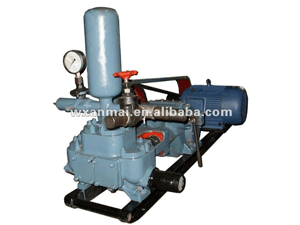

BW-200 Mud Pump

Description
BW200 piston pump is a horizontal two-cylinder reciprocating pump. This mud pump has double functions. The larger cylinder diameter (Ф80mm) can match 600 m drilling machine. The smaller cylinder (Ф65mm) can be used as associated equipment for 1000 m drilling machine. This product is mainly used for supplying flushing liquid to drilling well from core drill. This piston pump has smaller volume and lighter weight than similar pumps. It is more suitable for geological prospecting.

Features
1. This piston pump is easy to operate and easy to transport. It runs smoothly and creates small impulse.
2. This mud pump needs small driving power. It has large output volume and high pressure.
3. Steel ball valves are used in order to deliver the liquid which contain some granules.
4. The connecting rod bearing of this piston pump is made of new type abrasion-resistant alloy. It has long lifespan.
5. This reciprocating pump features low energy consumption and high quality.
6. This mud pump is a main device in geological survey. This pump supply liquid and make it circulate during drilling. This piston pump brings wasted rock back to the ground in order to maintain the bottom of the hole clean. It helps lubricate drill bits and cool drilling tools.

Use and Maintenance
1. Operator should pay attention to the size of sediment particles.
2. Clients should check the wearing parts of the piston pump frequently for the needs of repairing or replacement.
3. The quick-wear parts of this mud pump include pump casing, bearings, impeller, piston and liner, etc.
4. Advanced anti-wear measures should be used to increase the lifespan of the quick-wear parts.
5. Wearing parts and other parts of the piston pump should be repaired rather than replaced when possible.

Parameters of Reciprocating Pump
