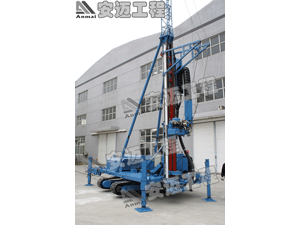

MXL-160A1 Multifunctional Drilling Rig

Advantages of Our Drilling Equipment
1. This multifunctional drilling rig adopts double mast design, and the length of effective clamping drilling tool can reach 10 meters. During jet grouting process, it can reduce wasted materials due to assembly and disassembly of drill tool.
2. Our drilling equipment can ensure the pile-forming quality and improve construction efficiency.
3. We are the first manufacturer of anchor drilling rigs and jet grouting drilling rigs. Our multifunctional drilling rigs are of batch production and affordable due to controllable manufacturing cost.
4. Owning top after-sale service team and experienced service engineers, we provide timely and efficient services for our clients.

Description
The multifunctional drilling rig can be available for various anchoring engineering, high pressure jet grouting pile, horizontal rotary jet, pipe roof and other infrastructure projects. This drilling equipment is mainly used for deep foundation excavation, anti-floating anchor, mini cast-in-place pile, micro steel pipe pile, precipitation well and geothermal construction.

Features of Multifunctional Drilling Rig
1. This drilling equipment adds a dismountable assistant tower with 20 meters high.
1) During the jet grouting construction, it can replace the elevated rotary jet, which can reduce times of disassembling drill tools, save time and materials as well as decrease hidden quality problems.
2) This multifunctional drilling rig can hoist anchor rod and save crane cost in the construction of anti-floating anchor.
3) The assistant tower can be dismantled when inclined anchor cable is working, and it will not affect the other functions of the drilling equipment.
4) In short anchor rod construction, this machine can drill to the end in one time, saving time and effort.
5) The assistant tower with standard design, the four sections can freely combine to 5 meters, 15 meters and 20 meters.
2. This multifunctional drilling rig is equipped with through-hole rotator.
1) Through-hole diameter is 92m, which can ensure the 89 drill pipe pass accessibly. This drilling equipment can be used for triple jet grouting construction and anchoring construction.
2) This multifunctional drilling rig also can use ordinary 89 steel tube to conduct anchor drilling rod construction.
3) Hydraulic chuck structure allows the drilling tools to replace freely.
4) Large torque power head with our enhanced jet grouting drilling tools, this drilling equipment can save a lot of cost and time in jet grouting construction in most formations.
3. This multifunctional drilling rig uses mature MDL-135G lifting mechanism, with good stability. It is easy to adjust in the anchoring construction, and reduce the dependence on working surface.
4. Our drilling equipment adopts a crawler chassis with lower ground pressure, even in softer ground, it enables to walk freely.
5. This multifunctional drilling rig is configured with orifices guiding device.
1) It is convenient to dismantle the drilling tools in the construction of jet grouting. Meanwhile, it can guarantee the angle and verticality.
2) The force situation of the steel pipe or drill tool may be improved in anchoring construction. Additionally, the construction precision is higher.
3) Special revolving device may reduce the wear of the drilling tools.
6. This drilling equipment adopts vertical visual device.
7. Outrigger can freely change direction, so this multifunctional drilling rig may be suitable for even worse places.
8. Platform uses hydraulic control rotation, featuring in quick and accurate alignment, saving time and effort.

Composition of Multifunctional Drilling Rig
This drilling equipment is composed of crawler chassis, rotator, propelling frame, holder, operating board, pump station, carriage, vice tower and oil tank. The drilling tool consists of drill rod, diverter, drilling bit, locking device, forks and adjustable joints.

Parameters of Multifunctional Drilling Rig

As a professional drilling equipment manufacturer and supplier in China, we mainly provide anchor drilling rig, multifunctional drilling rig, jet grouting drilling rig, pump trucks as well as drilling tools. We have the ability to annually manufacture 800 sets of MD series anchor drill rigs and 1000 sets of XP series jet grouting drilling equipments. Till now, we have exported our multifunctional drilling rigs to Vietnam, Brunei, Singapore, Iran, Britain, Canada, Nigeria and other countries and regions.
