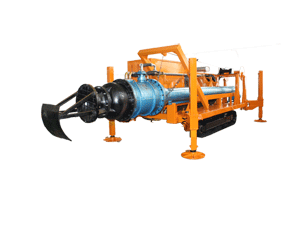

CWP-100 Crawler Pump Truck

Introduction
CWP-100 mobile pump stations are special custom-made and high efficient drainage systems developed by our company. It can meet the needs of urban drainage, pond and river pumping, and various emergency rescue drainage needs. This movable emergency pump station has received the ISO9001-2000 quality system certification and the GJB9001B-2009 certification. With a wider crawler chassis and a large reducer, the walking capacity of our pump stations is more powerful. The wider crawler can effectively prevent ground subsidence.

Advantages of CWP-100 Movable Emergency Pump Station
1. The hydraulic system adopts high standard NS7 grade, with good cooling equipment.
2. Key hydraulic parts of our pump stations adopt foreign famous brand products.
3. With crawler structure, it has a strong adaptation to the ground.
4. This movable emergency pump station features small size, easy operation, good flexibility and high technology. It is easy and convenient for remote control.
5. Our company has an independent R&D team that can design and develop pump stations based on our own technology. There are a lot of market research engineers engaged in product design and improvement.
6. This movable emergency pump station is of powerful force and large water displacement.
7. The key parts have obtained national patents.

Parameters of CWP-100 Mobile Pump Stations

Rated Rotary Speed r/min

1450

Power of Diesel Engine kW

255 (WEICHAI)

Weight of Movable Emergency Pump Station kg

11000

Rated Pressure of Hydraulic System Mpa

35

Theoretical Flow of Hydraulic System L/min

363

Actual Flow of Hydraulic System L/min

353

Climbing Angle °

20

Crawler Walking Speed m/h

1000

Support Oil Cylinder Stroke mm

1200

Overall Dimension (L × W × H) mm

7490 × 2870 × 2365

Construction Dimension (L × W × H) mm

7140 × 3720 × 3245

Hydraulic Oil Tank Capacity L

603

Diesel Oil Tank Capacity L

300

Pumping Flow of Mobile Pump Stations M2/S

1

After-Sales Service
1. Except quick-wear parts, the movable emergency pump station will have six-month warranty period. During the warranty period, we will supply free maintenance for crawler pump stations caused by quality problem.
2. The host machine enjoys a whole life after-sale service. The services after warranty will be charged specified fees.
3. For overseas clients, within the warranty period, due to product quality problem, we will offer free maintenance service for movable emergency pump stations. But the clients may undertake the transportation expenses, board and lodging fees. The services after guarantee period will be charged in accordance with external service standards of company.
