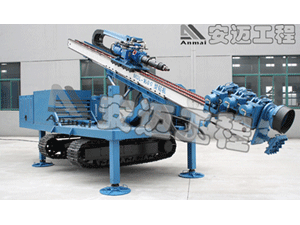

MDL-160E Top Driven Multifunctional Drilling Rig

Description
In order to satisfy the market's demands, our company newly developed a MDL-160E top driven multifunctional drilling rig, which is a multifunctional drilling machine to meet complex strata. Its drilling diameter is 150-250mm, and drilling depth 140-180m.
The main parts adopt our company's latest group technology. This top drive drill equipment is applicable to anchoring engineering, such as urban foundation pit supporting and buildings displacement control. And is mainly applied to construction engineering supporting, slope supporting, hole construction, tunnel and pipe shed engineering, etc.

Advantages
1. Compared with other top drive drill equipment, this MDL-160E top driven multifunctional drilling rig adopts original Germany-made top drive power head. It has big power and reliable performance. This MDL-160E multifunctional top-driven drilling rig can dill in an impact rotary way.
2. Equipped with holding shackle with three head, the working efficiency of the top driven multifunctional drilling rig is greatly improved.
3. This top drive drill equipment adopts variable hydraulic system, imported variable valve, imported proportional valve, so it has credible quality, superior performance, long operation life and convenient operation.
4. As our company is the first manufacturer of domestic anchor drilling rig and jet grouting drilling rig, and our company's products are produced in batch, the cost is cheap and the sales price is low.
5. Our company has a first-class after-sale service group and enough engineers on line. They can provide timely and high-efficient after-sale service for customers due to their rich experience.

Features
1. The power head adopts imported Germany-made product, and the top of the power head can vibrate with big power. Without DTH hammer or air compressor, the MDL-160E multifunctional drilling rig can drill hole of high efficiency and good effect.
2. The drilling equipment are in participation in transferring impact energy from the outer to the inner, and not easy to happen the hole accidents such as drill sticking, thus the top drive drill equipment effectively reduces cost and risk.
3. With big torque, high rotary speed, and big power, this MDL-160E top driven multifunctional drilling rig is applicable to a wide-range of strata. When meeting those fragile holes such as egg layer, gravel layer, sand stone soil, sand hole, the drill equipment has a very high penetration rate and pore forming efficiency. Especially when the moisture content of local layer is too high, and DTH hammer impactor can't work, this drilling machine has become the only choice.
4. The main hydraulic parts of top drive drill equipment are imported.

Components of MDL-160E Top Driven Multifunctional Drilling Rig
1. Cover Piece: It can make the appearance more scientific, and protect key hydraulic components from pollution.
2. Landing leg: It can not only maintain hydro-cylinder intact, but also increase the intensity of supporting.
3. Operating floor: Split type can make operation simpler and avoid misoperation.
4. Crawler: Longer and wider crawler of top drive drill equipment can effectively prevent sinking. It is applied to far-range strata.
5. Lifting: It can adjust to the height of hole mouth, and it will not depend on the height of working surface.
6. Automatic swivel plate: It will spare human's labor. And it's convenient.
7. Power head: The drilling machine adopts imported Germany-made top drive power head. With large output torque, the rotary center was lower than those of top driven multifunctional drilling rigs. And it greatly improving the stability of drilling rig.
8. Water faucet of big hole resisting high pressure: It is a necessary equipment for construction of expanding head drill bit.
9. Cooling system: In view of the special working condition, the cooling system of top drive drill equipment is optimized to ensure that the hydraulic system's outdoor temperature is 45°C, and the highest temperature should not exceed 70°C.

Parameters of MDL-160E Top Driven Multifunctional Drilling Rig
